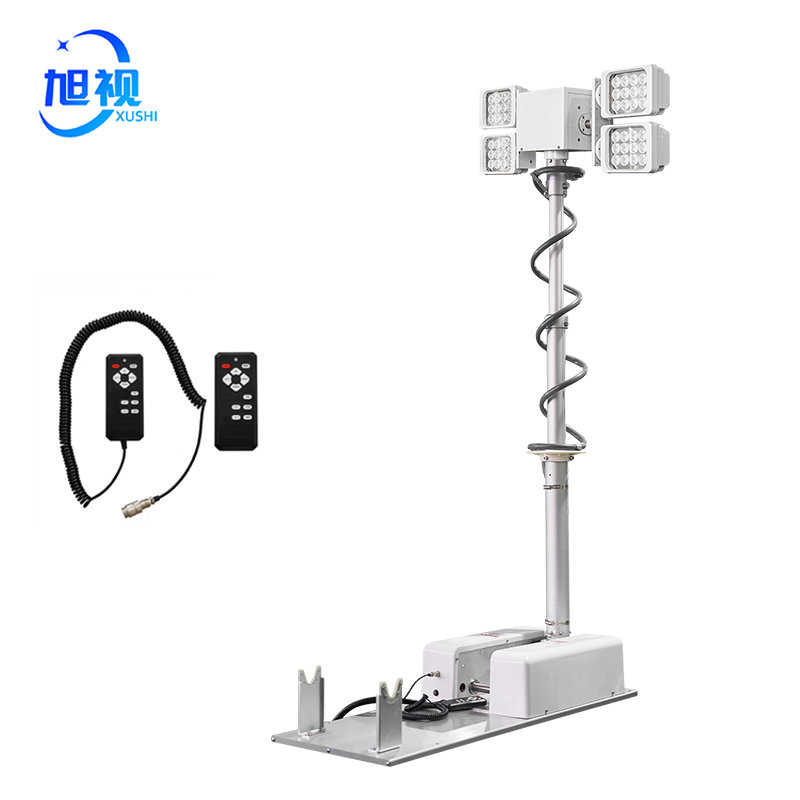

XS-184120L 1.8 m (5.91 ft) Pneumatic Fold-Down Light Tower – 4 × 120 W LED

The XS-184120L is a vehicle-mounted pneumatic fold-down LED light tower designed for fire trucks, rescue vehicles, emergency command vehicles and mobile service vehicles.

Equipped with four 120W LED floodlights, the system delivers up to 52,800 lumens of high-intensity illumination. The mast automatically raises from the horizontal transport position to the vertical working position and pneumatically extends to a height of 1.8 metres.

Its motorised lighting head provides 380° horizontal rotation and 330° vertical rotation, allowing operators to accurately direct the light to the required working area. RS485 wired control and 433MHz wireless remote control are available for convenient operation.

Key features

Four 120W high-output LED floodlights
Total luminous flux up to 52,800 lm
1.8m pneumatic telescopic mast
Automatic fold-down and lifting operation
380° horizontal and 330° vertical rotation
RS485 wired and 433MHz wireless control
Two-group independent lamp control
Deployment and retraction time within 30 seconds
Available in DC12V, DC24V or AC220V
Operating temperature: -21°C to +55°C
Remote control distance up to 50m
Designed for vehicle-mounted emergency lighting

Categories: 1.8 m / 5.91 ft, Pneumatic Fold-Down Light Tower, Vehicle-Mounted Fold-Down

Request a Quote

Description
Reviews (0)

Designed and Manufactured for Vehicle Integration

The is manufactured for integration into fire trucks, rescue vehicles, emergency command vehicles and special-purpose vehicles.

Its compact fold-down structure reduces transportation height, while the pneumatic mast, motorized pan-and-tilt unit and dual-control system provide fast and reliable operation in emergency environments.
